75 Litre Water Tank Upright
Description / 75 Litre Water Tank Upright

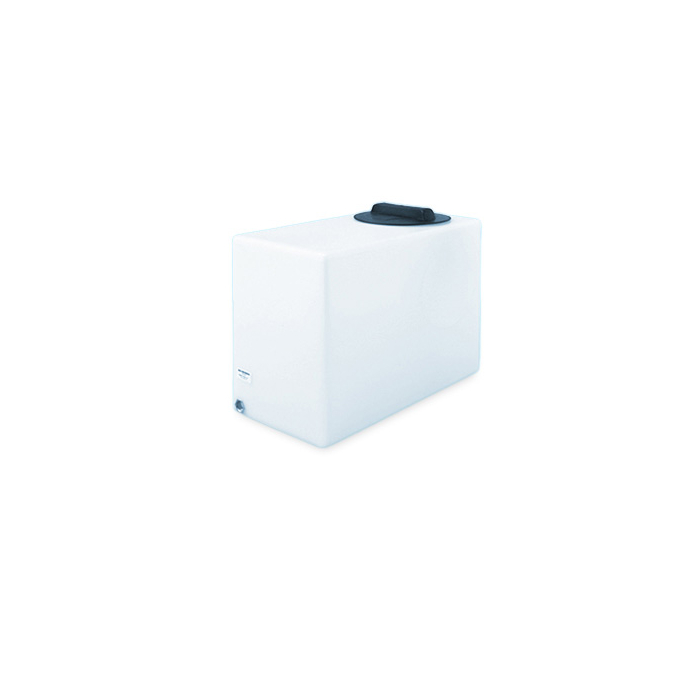

75 litre upright water tank made from high-quality MDPE – narrow upright/vertical design for space-saving installation in tight areas.
Features & Benefits
- 5-6 mm wall thickness for strength and reliability
- From high quality MDPE, roto-moulded (seamless; no welded seams)
- Durable and impact-resistant for long service life
- Food-safe, UV-resistant and chemical-resistant; REACH-compliant
- Temperature resistant for water up to +70 °C
Installation & Handling
- The 3/4" BSP outlet is standard. Choose drilled (open) for immediate use with brass connection sets, or undrilled (sealed) so the outlet remains closed until needed.
- For adding extra connections, outlets, fillers or vents use our PP Tank Connection Sets. See our installation guide for detailed instructions.
- 20 cm screw lid – available in vented or unvented version, selectable as required.
- Inspection opening: 18.6 cm for easy access and cleaning
- Dimensions: 60 cm × 30 cm × 49 cm (L × W × H incl. lid)
Applications
- Professional & industrial: plant and mechanical engineering, OEM projects, industrial and production facilities, process and cooling water, agriculture, horticulture, construction sites
- Mobile: campers, motorhomes, caravans, boats, yachts, service vehicles, cleaning vehicles, mobile water supply, events and emergency services
- Domestic: rainwater harvesting, garden irrigation, toilets, washing machines, cleaning systems, household water supply and DIY projects
- Spin Weld Outlets available on request for larger orders or OEM projects.
Drawings & Certificates
3D step file available on request. Technical drawing, WRAS food safety certificate, REACH/RoHS-compliance and chemical resistance list are available for download below.
FAQs & Installation
- Which lid type should I choose for mobile use?
This tank is available with a vented or an unvented 20 cm lid. For mobile applications choose the unvented lid and install an external vent using our tank vents. For stationary use, the vented lid is suitable. - What does drilled vs. undrilled outlet mean?
- How can I install additional connections on the tank?
- How should I secure or fasten the water tank?
Find detailed answers and more questions in our FAQ section.
Drawings & Certificates
More Information
| General Information | |
|---|---|
| Capacity (L) | 75 |
| Dimensions (LxWxH cm) | 60 x 30 x 45 |
| Height incl. Lid (cm) | 49 |
| Shape & Type | Vertical Tank |
| Weight (kg) | 6 |
| Material & Durability | |
| Material | MDPE |
| Wall Thickness (mm) | 5 |
| Food-Safe Certification | WRAS approved - natural / black / light blue |
| UV Resistance | Yes |
| Temperature Resistance (°C) | max. + 70°C |
| Chemical Resistance | Yes with undrilled BSP Outlet |
| Suitable for Waste Water & Diesel | Yes |
| Design Features | |
| Baffles | No |
| Lid Size (cm) | 20 cm |
| Inspection Opening (cm) | 18,6 cm |
| Lid vented | selectable |
| Lid with Float | optional |
| 3D file available | Yes, on request |
| Connections & Installation | |
| BSP Connections | Yes |
| BSP Connection Size | 3/4" |
| Spin Weld Outlet possible | Yes |
| Installation Type | upright, vertical |
| Mounting Options | plastic-coated steel strips / stainless steel brackets / frames |
| Accessory Compatibility | Brass & Plastic, Filters, Float-Valves |
Installation Push-In BSP Fittings
Our Push-In BSP Fittings can be installed quickly, easily, and completely from the outside; even in areas that are not accessible from the inside. This allows connections to be made flexibly at any flat section of the water tank; without opening or dismantling the tank.
Simple. Fast. Flexible. Our PP tank connectors feature an external thread from ½" to 2" and an internal thread from 3/8" to 1 ½" inside the fitting.
Tip: For liquids other than water, versions with NBR seals (diesel-resistant) and FKM seals (chemical-resistant) are available
Video: Installing Push-In BSP Fitting on watertank
