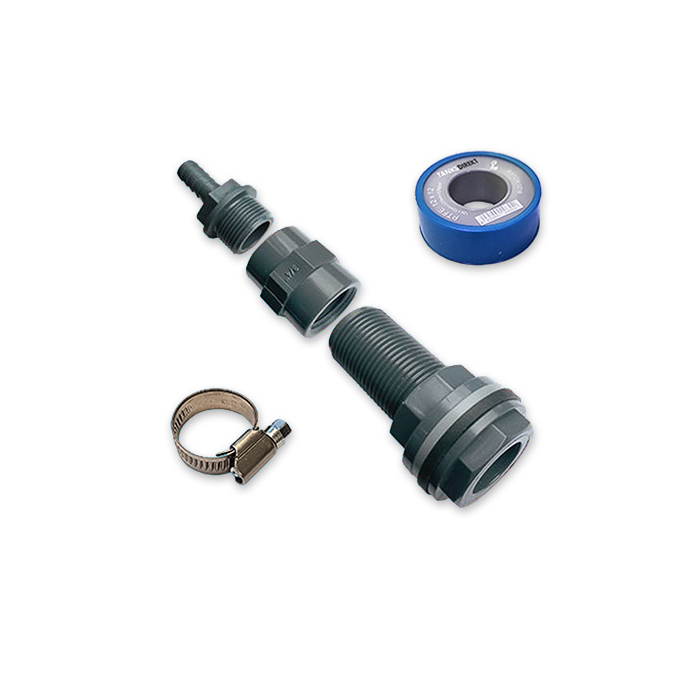

Tank Connection Set 13 mm Hose Straight
Description / Tank Connection Set 13 mm Hose Straight
This product can be installed by you easily. First drill a hole with a diameter of 27mm in the tank on the wanted position. Twist the grey nut off the tank connection and take of the white plastic ring. From inside the tank now stick the rest of the tank connection with the rubber seal still on it through the drilled hole. (beware: you should be able to reach the drilled hole from the inside of the tank). Now slide the white plastic ring over the tank connection and then screw the grey nut on tight. Now there is a connection with external thread left sticking out of the tank. On this thread the other products can be screwed on. Beware thas all thread connections should have 6 wraps of PTFE-tape around them. When this is done you can connect the hose to the hose tail please make sure you use a hose clip to tighten them together. All suitable products you can find below.
More Information
| General Information | |
|---|---|
| Weight (kg) | 0.1 |
| Material & Durability | |
| Material | PVC |
| UV Resistance | No |
| Suitable for Waste Water & Diesel | No |
Installation PVC-Connections
Additional connections for inlet, overflow, or external ventilation can be easily installed by yourself using PVC tank connectors or PVC tank connection kits in sizes ranging from ¾" to 2".
Please note: The area where you plan to drill the hole must be accessible through the tank’s existing lid opening to securely tighten the PVC tank connector from the inside.
Result: You will obtain an external thread in the desired inch size for attaching additional tank accessories such as ball valves or hose tails.
Video: Installing the PVC Tank Connection on the Water Tank
