PP Tank Connection Set 13 mm Hose 90° Bend
Description / PP Tank Connection Set 13 mm Hose 90° Bend

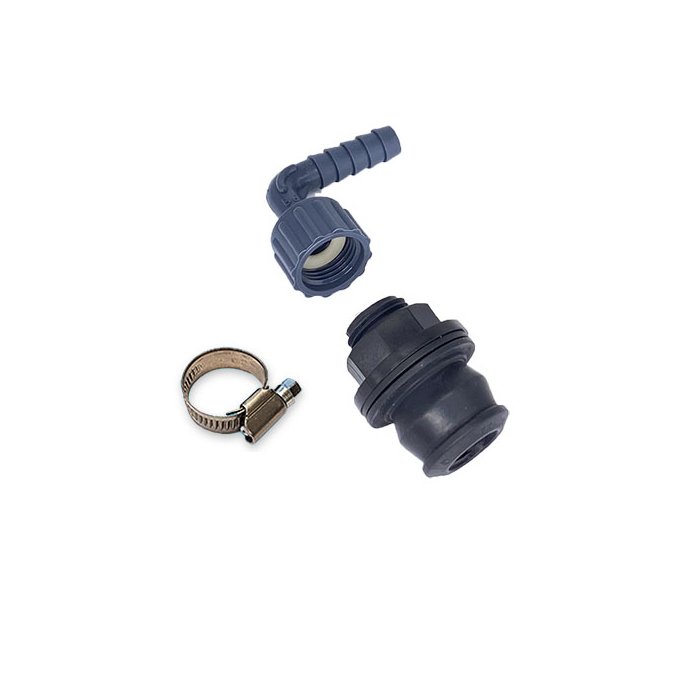

PP Tank Connection Set for 13 mm Hose Bend
With our PP Tank Connection Set you can easily install an additional bend connection for inlet, outlet or overflow on the water tank/plastic tank. To prepare, drill a hole of the required size, for this connection Ø 29mm, at the desired position in the tank. Insert the Push-In BSP Fitting into the hole from the outside and tighten the nut from the outside. As a result the EPDM gasket expands inside the tank and completely seals the opening. The Push-In BSP Fitting is now completely installed from the outside and you can screw the bend Hosetail with internal thread onto the external thread of the Push-In BSP Fitting.
Drawings & Certificates
More Information
| Material & Durability | |
|---|---|
| Material | PP |
| UV Resistance | No |
| Suitable for Waste Water & Diesel | No |
Installation Push-In BSP Fittings
Our Push-In BSP Fittings can be installed quickly, easily, and completely from the outside; even in areas that are not accessible from the inside. This allows connections to be made flexibly at any flat section of the water tank; without opening or dismantling the tank.
Simple. Fast. Flexible. Our PP tank connectors feature an external thread from ½" to 2" and an internal thread from 3/8" to 1 ½" inside the fitting.
Tip: For liquids other than water, versions with NBR seals (diesel-resistant) and FKM seals (chemical-resistant) are available
Video: Installing Push-In BSP Fitting on watertank
