57 Litre Water Tank Wheel Arch
Description / 57 Litre Water Tank Wheel Arch

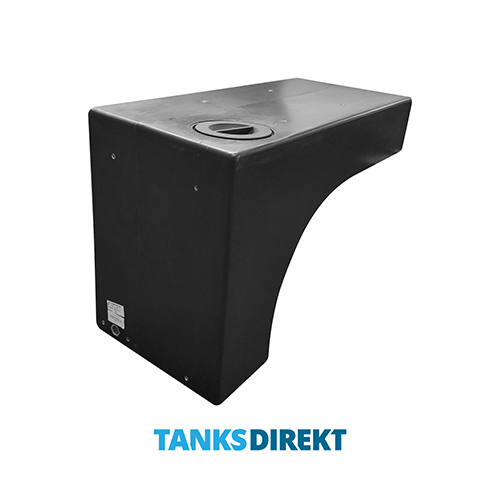

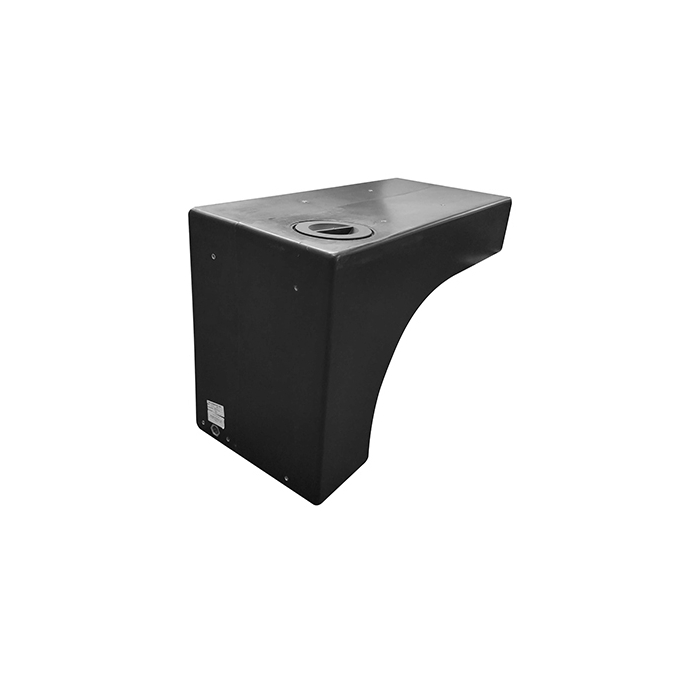

57 litre wheel arch water tank (MDPE) – robust tank designed to fit securely over the wheel arch in campervans, motorhomes and caravans. Suitable for fresh water or grey water. Supplied with stainless-steel fitting kit (brackets and screws).
Fit & Compatibility
- Capacity: 57 L – compact but wider design for extra volume
- Mounts securely over the wheel arch to optimise space
- Universal wheel arch tank – fits a wide variety of campervan and motorhome models
- Dimensions: 75 × 35.5 × 50 cm (H excl. lid), 52 cm incl. lid
- Weight: 7.0 kg | Wall thickness: 5-6 mm
- Outlet: ½" BSP brass internal thread (supplied drilled/open)
- Lid: 12 cm screw cap, non-vented
- 10× M8 inserts for fixing | Stainless-steel fitting kit included
Features & Benefits
- Robust 5-6 mm walls for strength and reliability
- Roto-moulded MDPE – seamless, durable, UV-stabilised
- Food-grade quality – safe for drinking water, suitable for waste water
- Optimised design for efficient use of wheel arch space
- Impact-resistant build for long service life
Installation & Handling
- ½" BSP brass outlet – supplied drilled/open for direct use with brass connection sets
- 12 cm lid for easy filling, inspection and cleaning
- 10× M8 threaded inserts for secure mounting
- Includes stainless-steel fitting kit: 6× M8x12 mm screws, 6× M8x25 mm washers, 2× 50×55×30 mm angle brackets, 4× 150×90×60 mm angle brackets
- For adding extra connections such as fillers, vents or outlets use our PP Tank Connection Sets
Applications
- Campervans & motorhomes: 57 L capacity for compact conversions
- Caravans & RVs: fresh or grey water storage
- Professional builders & service vehicles: quick installation with integrated fixings, efficient use of wheel arch space
Drawings & Certificates
Technical drawing, WRAS food safety certificate, REACH/RoHS compliance available for download below.
FAQs
- Why is the ½" brass outlet supplied drilled/open as standard?
- Can this tank be used for both fresh and waste water?
- How do I install with the supplied fitting kit?
Drawings & Certificates
More Information
| General Information | |
|---|---|
| Capacity (L) | 57 |
| Dimensions (LxWxH cm) | 75 x 35.5 x 50 |
| Height incl. Lid (cm) | 52 |
| Shape & Type | Wheel Arch Tank |
| Weight (kg) | 7 |
| Material & Durability | |
| Material | MDPE |
| Wall Thickness (mm) | 8 |
| Food-Safe Certification | WRAS approved - natural / black / light blue |
| UV Resistance | Yes |
| Temperature Resistance (°C) | max. + 70°C |
| Chemical Resistance | Yes with undrilled BSP Outlet |
| Suitable for Waste Water & Diesel | Yes |
| Design Features | |
| Baffles | No |
| Lid Size (cm) | 12 cm |
| Inspection Opening (cm) | 10,6 cm |
| Lid vented | No |
| 3D file available | Yes, on request |
| Connections & Installation | |
| BSP Connections | Yes |
| BSP Connection Size | 1/2" |
| Spin Weld Outlet possible | No |
| Installation Type | upright, vertical |
| Mounting Options | Fitting Kit |
| Accessory Compatibility | Brass & Plastic, Filters, Float-Valves |
Installation Push-In BSP Fittings
Our Push-In BSP Fittings can be installed quickly, easily, and completely from the outside; even in areas that are not accessible from the inside. This allows connections to be made flexibly at any flat section of the water tank; without opening or dismantling the tank.
Simple. Fast. Flexible. Our PP tank connectors feature an external thread from ½" to 2" and an internal thread from 3/8" to 1 ½" inside the fitting.
Tip: For liquids other than water, versions with NBR seals (diesel-resistant) and FKM seals (chemical-resistant) are available
Video: Installing Push-In BSP Fitting on watertank
