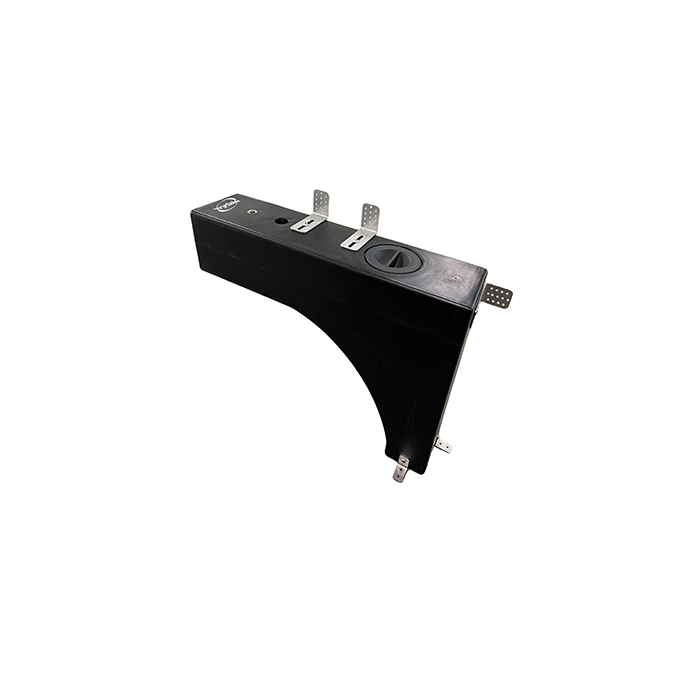

Wheel Arch Tank 37L for installation in vehicles, caravans, campers and camping buses. Installation on the wheel arch. Secure fastening with Fitting Kit on 7x M8 molded in screw connections. This 37L Wheel Arch Tank has a 12 cm access Lid - unvented, 1x 1 1/4" BSP insert (mostly used as filler) and 1x 1/2" BSP insert as venting option or as alternative filler option and 2x 1/2" BSP inserts on the lower sides for different outlet options. This tank is especially designed to fit Ford Transit Custom Models from year 2023 onwards & VW Transporter T7 from year 2023 onwareds on the nearside or offside of the vehicle. The 37L Wheel Arch Tank will also fit a wide range of other vehicles/Campers, see drawing for dimensions and more technical specifications.
| Measurements (L*W*H) | 80*20*52 cm |
|---|
| Height incl. Lid | 52.0 cm |
|---|
| Weight | 8.00 kg |
|---|
| Capacity | 37 L |
|---|
| Size BSP Outlet | 3x 1/2" / 1x 1 1/4" |
|---|
| Lid Size | 12 cm |
|---|
| Default Colour | Traffic Black (Ral 9017) |
|---|
| Length | 80.0 cm |
|---|
| Width | 20.0 cm |
|---|
| Height excl. Lid | 52.0 cm |
|---|
| Height incl. Lid | 52.0 cm |
|---|
| Weight | 8.00 kg |
|---|
| Capacity | 37 L |
|---|
| Wall thickness | 5 mm |
|---|
| Material | MDPE |
|---|
| Size BSP Outlet | 3x 1/2" / 1x 1 1/4" |
|---|
| Lid Size | 12 cm |
|---|
| Default Colour | Traffic Black (Ral 9017) |
|---|
| Tank Type | Wheel Arch Tank |
|---|
| BSP Outlet | Yes |
|---|
| Spin Weld Outlet possible | No |
|---|
| Lid vented | No |
|---|
| Baffels | No |
|---|
37 Litre black wheel arch tank with 12cm flat Lid and 1x 1 1/4 inch bsp inlet & 3x 1/2 inch bsp outlet
Our black 37 litre wheel arch tanks are suitable for storing and transporting portable water and other liquids in vehicles. The wall thickness of these tanks is approx. 5 mm. For installation on the wheel arch 6x M8 screw connections are molded in the plastic of the tank. Delivery will be including Fitting Kit; consisting of corresponding angle brackets and screws from stainless steel. This 37L Wheel Arch Tank has 1x 1 1/4" BSP insert (mostly used as filler option) 1x 1/2" BSP inlet on top as ventig option or as alternative filler option and 2x 1/2" BSP outlets at the lower sides for different outlet options. These tanks are especially designed to fit 2023 Ford Transit Custom Model onwards & 2025 VW Transporter T7 onwards on the nearside or offside of the vehicle/camper. But these 37L Wheel Arch Watertanks will also fit a wide range of other vehicles and Camper models on the wheel arch, see drawing for dimensions and more technical specifications.
