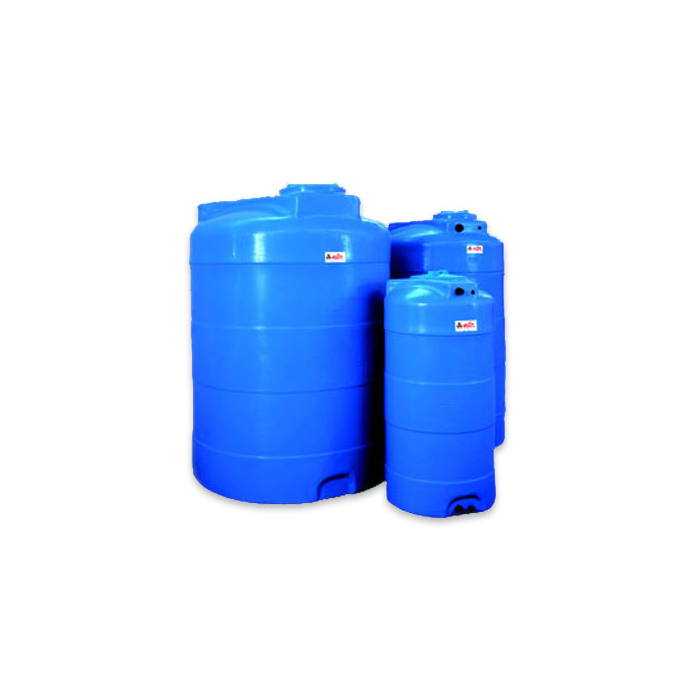

1000 Litre Storage Tank Round Upright – (RPV-Series)
Description / 1000 Litre Storage Tank Round Upright – (RPV-Series)
The RPV 1,000 litre storage tank is a vertical cylindrical polyethylene (LLDPE) tank designed for stationary storage of potable, process and rainwater. Its compact standing form suits indoor and outdoor installation; the UV‑stabilised food‑grade material ensures long‑term durability and safe water quality.
All technical details such as dimensions, weight and material are listed in the technical data table.
Features & Benefits
- Made from food‑grade polyethylene (LLDPE) – suitable for potable, process and rainwater
- Vertical, space‑saving design with stable base
- Seamless rotationally moulded construction – stress‑free, strong and corrosion‑free
- 30 cm vented access lid with integrated vent labyrinth for pressure equalisation
- Lifting lugs for safe transport
- Flat areas for easy fitting installation
- Optional float valve available
Installation & Handling
- Suitable for stationary installation on a flat, load‑bearing surface
- Inlet and outlet positions can be configured on flat connection areas
- Fittings and accessories can be installed using PP Tank Bulkhead Fittings (Push‑In BSP)
- 30 cm lid opening for easy cleaning and maintenance
- Lightweight handling relative to capacity
Applications
- Stationary storage of potable, process and rainwater
- Industrial, agricultural and commercial water systems
- Private garden or domestic water supply
- Storage of liquid foodstuffs – for chemical use refer to the resistance list
Quality & Manufacturing
- Rotationally moulded from UV‑stabilised polyethylene (LLDPE)
- Seamless, corrosion‑free and long‑lasting
- Fully recyclable and designed for decades of service
- Manufactured according to European quality and safety standards
FAQs & Installation
- Is the tank suitable for drinking water? – Yes, the polyethylene is food‑grade and hygienically safe.
- Are fittings included? – No, fittings are not pre‑installed and can be added as required.
- Can the tank be installed outdoors? – Yes, the UV‑stabilised material is weather‑resistant and suitable for outdoor use.
- Is compatible equipment available? – Yes, matching connection sets or PVC ball valves are available separately.
Find detailed answers and more questions in our FAQ section.
Drawings & Certificates
More Information
| General Information | |
|---|---|
| Capacity (L) | 1000 |
| Dimensions (LxWxH cm) | 79 x 79 x 218 |
| Height incl. Lid (cm) | 218 |
| Shape & Type | Vertical/Round Tank |
| Weight (kg) | 33 |
| Material & Durability | |
| Material | LLDPE |
| Wall Thickness (mm) | 6 |
| Food-Safe Certification | Regulation (EC) Nr. 10/2011 & (EC) No 1935/2004 |
| UV Resistance | Yes |
| Temperature Resistance (°C) | max. + 60°C |
| Chemical Resistance | Yes |
| Suitable for Waste Water & Diesel | Yes |
| Design Features | |
| Baffles | No |
| Lid Size (cm) | 30 cm |
| Inspection Opening (cm) | 25,5 cm |
| Lid vented | Yes |
| Lid with Float | optional |
| 3D file available | No |
| Connections & Installation | |
| BSP Connections | No |
| Spin Weld Outlet possible | No |
| Installation Type | upright, vertical |
| Accessory Compatibility | Plastic, Filters, Float-Valves |
Installation Push-In BSP Fittings
Our Push-In BSP Fittings can be installed quickly, easily, and completely from the outside; even in areas that are not accessible from the inside. This allows connections to be made flexibly at any flat section of the water tank; without opening or dismantling the tank.
Simple. Fast. Flexible. Our PP tank connectors feature an external thread from ½" to 2" and an internal thread from 3/8" to 1 ½" inside the fitting.
Tip: For liquids other than water, versions with NBR seals (diesel-resistant) and FKM seals (chemical-resistant) are available
Video: Installing Push-In BSP Fitting on watertank
