Float 1 inch

Article: HV-1I
Compact float valve with 1 inch BSP female thread - without bulky lever arm and ball.
View full description
{"9269":[{"qty":239,"shipmentDate":"April 2, 2026","delivery_time":"2-3 Days","delivery_date_range":"4 - 5 Apr"},{"qty":9999999,"shipmentDate":"April 23, 2026","delivery_time":"2-3 Days","delivery_date_range":"25 - 26 Apr"}]}
{"inStock":"In Stock","deliveryTime":"Delivery Time:","deliveryBetween":"Delivery between","itemsLeft":"pc. available","available":"Available","estimatedDeliveryTime":"Delivery Time:","estimatedDeliveryBetween":"Estimated delivery between","selectLocation":"Select Location"}
{"country_id":"","postcode":"","has_address":false}
{"AT":"Austria","BE":"Belgium","CH":"Switzerland","CZ":"Czechia","DE":"Germany","DK":"Denmark","ES":"Spain","FI":"Finland","FR":"France","HR":"Croatia","IT":"Italy","LU":"Luxembourg","NL":"Netherlands","NO":"Norway","PL":"Poland","PT":"Portugal","SE":"Sweden"}
{"in_stock":"text-green-700","limited_in_stock":"text-orange-400","out_of_stock":"text-rose-700"}
{"in_stock":"text-green-700","limited_in_stock":"text-stone-700","out_of_stock":"text-orange-800"}
65.–
48.75
25 % Discount
58.01 Incl. Tax
High availability & ready to ship
Secure payment with PayPal, Credit Card & Klarna
Personal expert advice & quick support

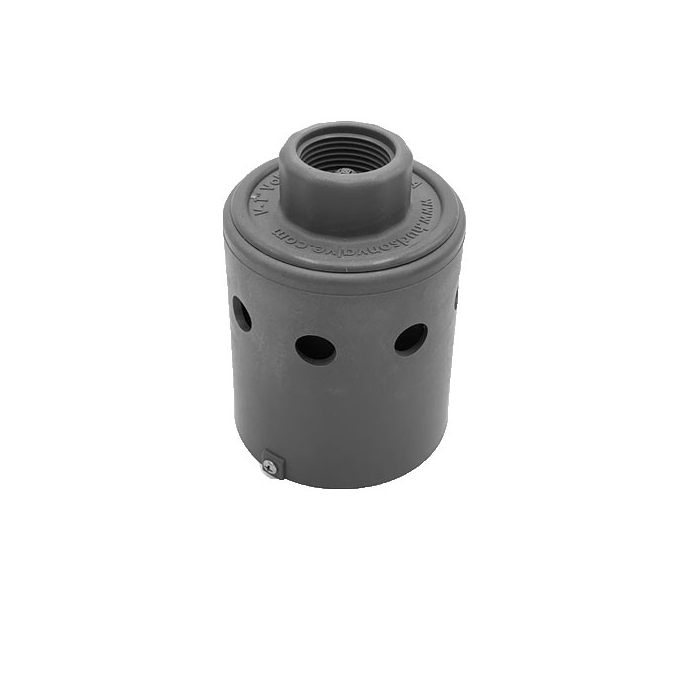

Description / Float 1 inch

Float valve with 1 inch female thread

The unique, patented design of this float valve uses water pressure as the force to close the valve, as opposed to a lever arm and ball. In addition, the small, compact size of the float valve is ideal for applications in small water tanks or for applications where aesthetics are important in addition to reliable function. Only suitable for water!

Internal thread: 1 inch

Height: 127mm

Diameter: 95.25mm

Working pressure: 0.28 - 6.85 bar

Max. Temperature: 80° C

If you want to install this float valve on the tank Lid, we recommend our tank Lids with float valve.

Drawings & Certificates

Flow Rate 1" Float Valve (Size: 96.9 KB)
Installation & Maintenance 1" Float Valve (Size: 281 KB)

More Information

General Information
Color Natural Translucent
Weight (kg) 0.3
Material & Durability
UV Resistance No
Suitable for Waste Water & Diesel No

Make your order complete

PVC Nipple 1 Inch External Thread

PVC Nipple 1 Inch External Thread

2.30
In Stock

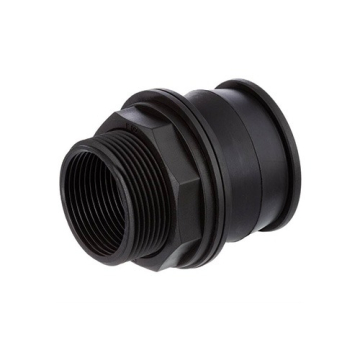

Push-In BSP Fitting 1 1/4" external thread x 1" internal thread + EPDM Gasket - food safe

Push-In BSP Fitting 1 1/4" external thread x 1" internal thread + EPDM Gasket - food safe

21.–
In Stock

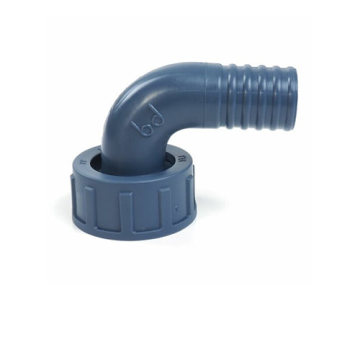

PP Hosetail 90° Bend 30mm with 1 1/4" internal thread-union nut & EPDM gasket

PP Hosetail 90° Bend 30mm with 1 1/4" internal thread-union nut & EPDM gasket

9.90
In Stock

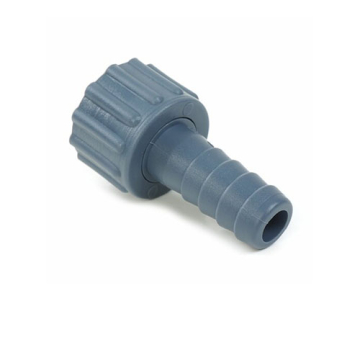

PP Hosetail straight 30mm with 1 1/4" internal thread-union nut & EPDM gasket

PP Hosetail straight 30mm with 1 1/4" internal thread-union nut & EPDM gasket

6.70
In Stock

Installation Push-In BSP Fittings

Our Push-In BSP Fittings can be installed quickly, easily, and completely from the outside; even in areas that are not accessible from the inside. This allows connections to be made flexibly at any flat section of the water tank; without opening or dismantling the tank.



Simple. Fast. Flexible. Our PP tank connectors feature an external thread from ½" to 2" and an internal thread from 3/8" to 1 ½" inside the fitting.

Tip: For liquids other than water, versions with NBR seals (diesel-resistant) and FKM seals (chemical-resistant) are available

Video: Installing Push-In BSP Fitting on watertank
